Researchers Find Ice Age Record in Mars’ Polar Cap

Climatic cycles of ice and dust build the Martian polar caps, season by season, year by year, and periodically whittle down their size when the climate changes. This image is a 3-D perspective view created from image data taken by the THEMIS instrument on NASA's Mars Odyssey spacraft. NASA/JPL/Arizona State University, R. Luk
Climatic cycles of ice and dust build the Martian polar caps, season by season, year by year, and periodically whittle down their size when the climate changes. This image is a 3-D perspective view created from image data taken by the THEMIS instrument on NASA’s Mars Odyssey spacraft. NASA/JPL/Arizona State University, R. Luk

Scientists using radar data from NASA’s Mars Reconnaissance Orbiter (MRO) have found a record of the most recent Martian ice age in the planet’s north polar ice cap.

The new results, published in the May 27 issue of the journal Science, agree with previous models that indicate a glacial period ended about 400,000 years ago, as well as predictions about how much ice would have been accumulated at the poles since then. The study helps refine models of the Red Planet’s past and future climate by allowing scientists to determine how ice moves between the poles and mid-latitudes, and in what volumes. The research team included scientists from the Southwest Research Institute, The University of Texas Institute for Geophysics (UTIG) and Washington University.

Mars undergoes variations in its tilt and the shape of its orbit over hundreds of thousands of years. These changes cause substantial shifts in the planet’s climate, including ice ages. Earth has similar, but less variable, phases called Milankovitch cycles.

Scientists use data from MRO’s Shallow Subsurface Radar (SHARAD) to produce images called radargrams that are like vertical slices though the layers of ice and dust that comprise the Martian polar ice deposits. For the new study, researchers analyzed hundreds of such images to look for variations in the layer properties.

The researchers identified a boundary in the ice that extends across the entire north polar cap. Above the boundary, the layers accumulated very quickly and uniformly, compared to the layers below them.

“The layers in the upper few hundred meters display features that indicate a period of erosion, followed by a period of rapid accumulation that is still occurring today,” said planetary scientist Isaac Smith, the study’s lead author.

Smith led the work while at Southwest Research Institute in Boulder, Colorado, but is now at the Planetary Science Institute in Tucson, Arizona. He came up with the idea for the research at The University of Texas Jackson School of Geosciences, where he received his Ph.D. in 2013.

SHARAD is one of two radar sounders in orbit around Mars, but it is the only one that approaches the resolution of airborne radar sounders on Earth, said Jack Holt, a study author and research professor at UTIG. The radar allowed researchers to detect and study layering within the polar caps on Mars.

“By applying basic principles of stratigraphy, we can unravel the record of ice deposition and removal at the poles of Mars,” he said. “This finding demonstrates the power of geophysics, and radar sounding in particular, to probe the subsurface and unravel climate history on another planet.”

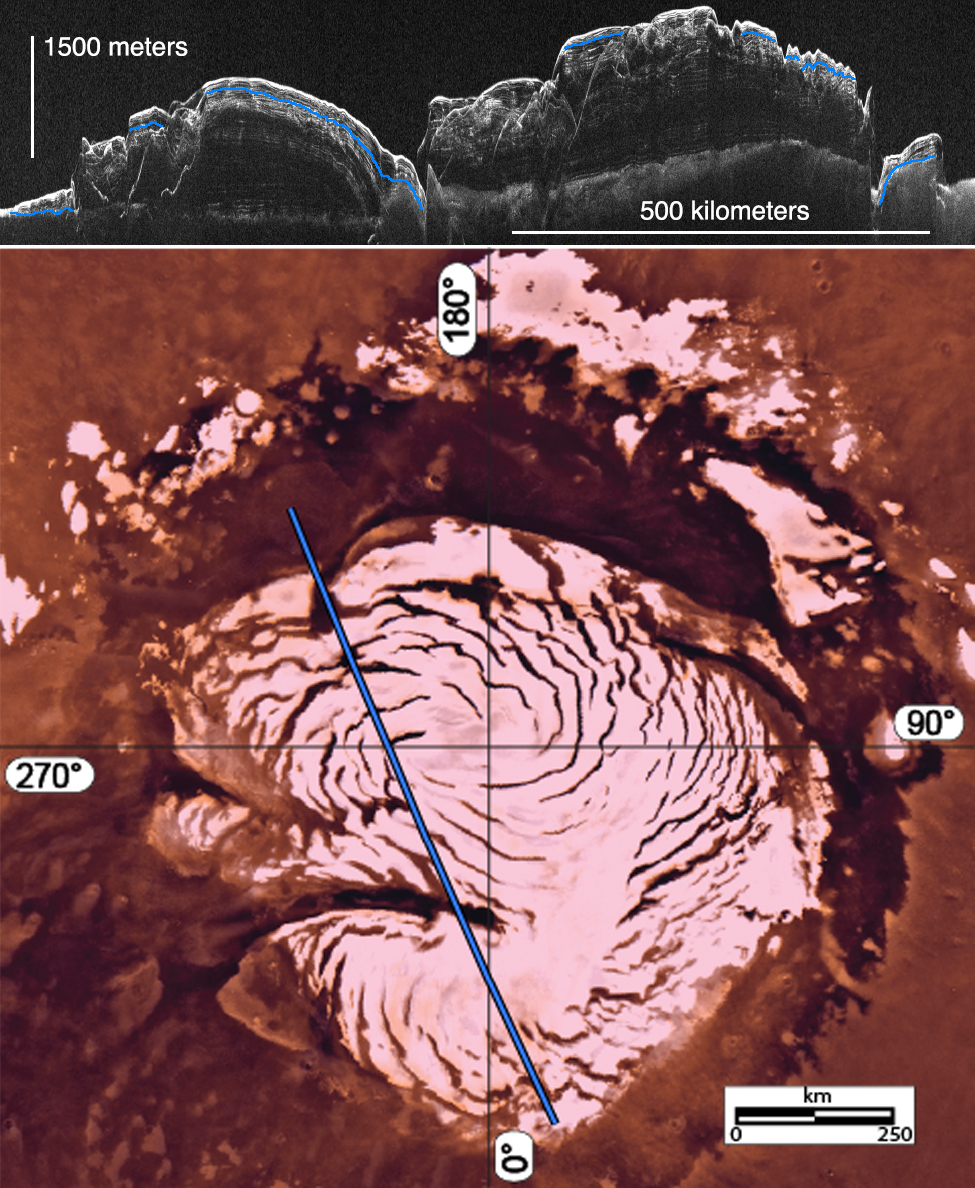

By analyzing radar images like the one at top of this montage, scientists discovered evidence for a past ice age in the northern polar ice cap of Mars. NASA/JPL-Caltech/Sapienza University of Rome

On Earth, ice ages take hold when the polar regions and high latitudes become cooler than average for thousands of years, causing glaciers to grow toward the mid-latitudes. In contrast, the Martian variety occurs when – as a result of the planet’s increased tilt – the planet’s poles become warmer than lower latitudes. During these periods, the polar caps retreat and water vapor migrates toward the equator, forming ground ice and glaciers at mid-latitudes. As the warm polar period ends, polar ice begins accumulating again, while ice is lost from mid-latitudes. This retreat and regrowth of polar ice is exactly what Smith and colleagues see in the record revealed by the SHARAD radar images.

Models predict the last Martian ice age ended about 400,000 years ago, as the poles began to cool relative to the equator. The models also suggest that since then the polar deposits would have thickened by about 980 feet (300 meters).

The upper unit identified by Smith and colleagues reaches a maximum thickness of 1,050 feet (320 meters) across the polar cap, which is equivalent to a 2-foot-thick (60-centimeter-thick) global layer of ice. That is essentially the same as model predictions made by other researchers in 2003 and 2007.

“This suggests that we have indeed identified the record of the most recent Martian glacial period and the regrowth of the polar ice since then. Using these measurements, we can improve our understanding of how much water is moving between the poles and other latitudes, helping to improve our understanding of the Martian climate,” Smith said.

After 10 years in orbit, MRO and its six science instruments are still in excellent shape.

“The longevity of the mission has enabled more thorough and improved radar coverage of the Martian poles,” said Richard Zurek, MRO project scientist at NASA’s Jet Propulsion Laboratory, Pasadena, California. “Our long life in orbit and powerful 3-D analysis tools are allowing scientists to unravel Mars’ past climate history.”

The Italian Space Agency provided the SHARAD instrument on Mars Reconnaissance Orbiter and Sapienza University of Rome leads its operations. JPL, a division of the California Institute of Technology in Pasadena, manages the mission for NASA’s Science Mission Directorate in Washington. Lockheed Martin Space Systems of Denver built the orbiter and supports its operations.
